An arc flash is the sudden, violent release of electrical energy that occurs when current travels through the air between conductors or from a conductor to the ground. The energy released in that fraction of a second includes intense heat, a pressure wave, blinding light, and molten metal particles moving at high velocity. The temperature at the point of an arc fault can exceed 35,000 degrees Fahrenheit, several times hotter than the surface of the sun. Arc flash incidents are one of the leading causes of serious injury and fatality among electrical workers in the United States.
The danger of arc flash extends beyond the immediate point of contact. Intense thermal energy can cause severe burns across a wide radius, even with several feet of distance from the fault. The pressure wave can throw personnel across a room, and the ultraviolet and infrared light produced can cause permanent eye damage. Vaporized metal contaminating the surrounding air presents additional exposure for anyone nearby. OSHA and the National Fire Protection Association both identify arc flash as a primary electrical safety hazard requiring hazard analysis, protective equipment requirements, and strict work procedure controls before energized work begins.
Switchgear concentrates multiple high-energy components, including circuit breakers, bus bars, protective relays, and high-voltage conductors, inside a confined metal enclosure. That combination makes switchgear one of the most common locations for arc flash hazards in commercial and industrial facilities. Every time a qualified technician opens a switchgear panel for inspection, services a breaker, or tests protective relays on energized equipment, the work introduces the conditions that arc flash requires to initiate. The difference between a routine service visit and a life-safety incident often comes down to whether the environment inside that enclosure has been properly evaluated and labeled before work begins.
The arc flash risk inside any switchgear lineup is not fixed. Dust and moisture inside the enclosure reduce insulation resistance and create conditions where an arc is more likely to initiate. Loose bus connections generate heat that accelerates insulation breakdown. Protective relays that have drifted out of calibration may fail to clear a fault quickly, allowing the arc to sustain longer and release more energy. A structured switchgear maintenance program catches these conditions before they escalate into an incident.
Not everyone working in or near an electrical room faces equal exposure to arc flash hazards, but the risk is broader than most facility managers realize. Licensed electricians and EGSA-certified technicians who service switchgear, exercise circuit breakers, and perform relay testing on energized equipment carry the highest direct exposure. Maintenance personnel, building engineers who check equipment status, and operations staff who access the electrical room regularly are all within the potential impact radius of an arc flash event at the switchgear lineup.
The highest-risk activities include working on energized panels without establishing an electrically safe work condition, racking circuit breakers under load, and performing diagnostic work where conductors are exposed. Facilities without documented arc flash hazard analyses have no defined flash protection boundaries, no labeled incident energy levels, and no PPE requirements, leaving workers without the information they need to assess their actual exposure. Automatic transfer switch service carries many of the same exposure factors, since both involve energized switching equipment with high available fault current.
LionHeart’s EGSA-certified technicians deliver switchgear maintenance programs that address arc flash prevention alongside electrical reliability, giving your facility the documentation and service records that NFPA 70E and 70B compliance require. Reach out today to schedule a service visit and take the first step toward a safer electrical environment for your team.
The primary standard governing arc flash safety in commercial and industrial facilities is NFPA 70E, the Standard for Electrical Safety in the Workplace. NFPA 70E establishes requirements for conducting arc flash risk assessments, labeling equipment with incident energy values and flash protection boundaries, and defining the personal protective equipment appropriate for energized work at each hazard level. NFPA 70B, the companion standard covering electrical equipment maintenance, specifically addresses the role of routine switchgear maintenance in reducing arc flash hazards over time. Compliance with NFPA 70E is mandatory for facilities where qualified personnel work near energized equipment.
An arc flash hazard analysis calculates the incident energy at each piece of switchgear based on available fault current, the clearing time of upstream protective devices, and the working distance of the technician performing service. The output is a set of labels placed on each piece of equipment identifying the incident energy level in calories per centimeter squared, the required PPE category, and the flash protection boundary within which PPE is required. Healthcare facilities and industrial operations often find that their incident energy levels are significantly higher than personnel assumed before the analysis was conducted. The analysis must be updated whenever the electrical system changes.
Maintaining the condition of your switchgear directly affects arc flash risk. A clean, properly torqued switchgear lineup with calibrated protective relays presents lower risk than the same equipment left deteriorated, because well-maintained protective devices clear faults faster and release less total incident energy. This is the connection NFPA 70B makes explicit: routine maintenance is an arc flash mitigation strategy, not just a reliability measure.
A complete switchgear maintenance program addresses the conditions that elevate risk levels inside the enclosure. Infrared thermography scans identify hot spots from loose bus connections that would otherwise go undetected until they reach fault conditions. Cleaning removes dust, moisture, and contamination that increase the probability of arc flash initiation. Protective relay testing confirms that fault clearing times are within specification, directly affecting incident energy calculations at your equipment. Pairing your switchgear maintenance with load bank testing gives your facility a condition record that supports NFPA 70B compliance and the documentation base an arc flash hazard analysis requires.
Arc flash hazards in switchgear are preventable when the right maintenance program is in place. Clean equipment, calibrated protective relays, and documented service records reduce incident energy levels, define work boundaries, and give technicians the information they need to work safely near energized systems. Facilities that treat arc flash prevention as a compliance checkbox rather than an operational priority are the ones that face the consequences when an incident occurs. LionHeart’s EGSA-certified team delivers comprehensive switchgear maintenance across Illinois, Wisconsin, Indiana, and Michigan. Contact us today and build the arc flash safety foundation your facility and your team deserve.
https://lionheartpower.com/wp-content/uploads/2026/07/Switchgear-Inspection-Checklist.jpg
1250
2000
Abstrakt Marketing
/wp-content/uploads/2025/10/LionHeart-Critical-Power-Specialists-Logo-October-2025-Inbound-SDR.png
Abstrakt Marketing2026-07-15 17:59:052026-07-15 17:59:10Switchgear Inspection Checklist: What Technicians Look for During a Service Visit
https://lionheartpower.com/wp-content/uploads/2025/12/switch2.jpg
1250
2000
Abstrakt Marketing
/wp-content/uploads/2025/10/LionHeart-Critical-Power-Specialists-Logo-October-2025-Inbound-SDR.png

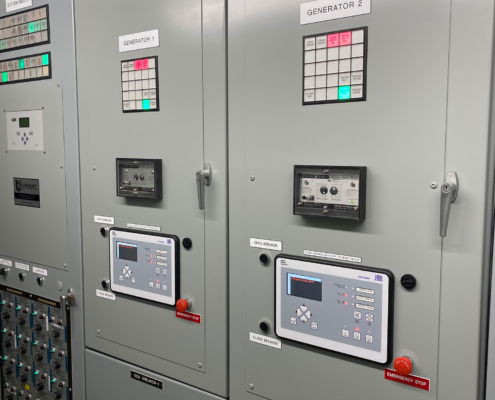

Abstrakt Marketing2026-07-15 17:52:112026-07-15 17:52:57What’s the Difference Between Open-Air vs Metal-Enclosed Switchgear?
